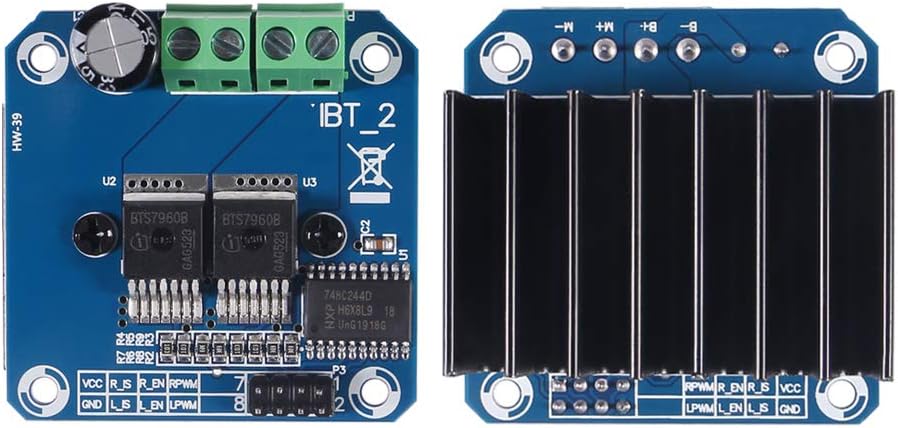

AITRIP 4 PCS BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Arduino Current Limit (4PACK)

This driver uses chips BTS7960B composed of high-power drive full H-bridge driver module with thermal over-current protectionDouble BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driverSpecification:High-current 43ATwo heat flow passing through an error signal outputSupply voltage: 5.5V to 27V5V power indicator on boardJust need four lines from MCU to driver module (GND. 5V. PWM1. PWM2)Isolation chip 5 V power supply (can share with MCU 5V), can also use the on-board 5V supplycan solder heat sinkControl method: PWM or levelDuty cycle: 0-100%PIN Definition:RPWM: Right Turn PWM LPWM: Left Turn PWM R_EN: Right Turn Enable (High Active) L_EN: Left Turn Enable (High Active)R_IS: Right Turn Current Warning (May Leave Floating) L_IS: Left Turn Current Warning (May Leave Floating) VCC: (5V) GND:signal common low endPackage Included:4* BTS7960B H-bridge 43A High-Power Motor Driver Module

• 5V isolate with MCU, and effectively protect MCU
• Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
• BTS7960 The supply voltage is 5.5V to 27V
• Double BTS7960 large current H bridge driver, limit up to 43A large current output, with a strong drive and brake effects
• This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection
